Master 63-65

About the Machine

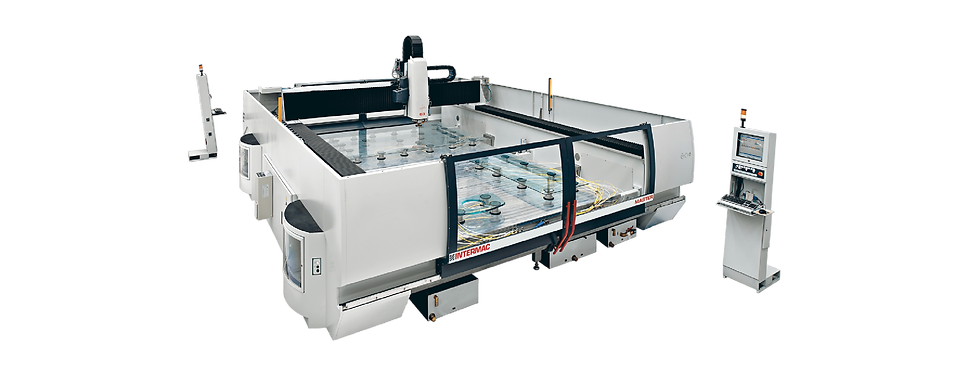

Introducing the Master 63-65 series by Intermac, these working centers have been tailored to meet the needs of companies that operate without dimensional constraints.


These machines offer an optimal solution for working with structural glass, oversized sheets, and large-scale furniture items such as tables and doors. Notably, they are particularly well-suited for double-station work, enhancing productivity and versatility.


A notable feature of the Master 63-65 series is the introduction of a new generation of rectangular suction cups. These suction cups represent a significant advancement in technology, as they outperform traditional suction cups in terms of vacuum retention. Available across all versions and sizes of these machines, these rectangular suction cups offer exceptional customization options, allowing businesses to tailor their equipment to meet specific requirements.


In conclusion, the Master 63-65 series of Intermac working centers stands as a testament to innovation and adaptability in the industry. Designed for companies that handle large and challenging materials, these machines are equipped with the latest technology.

Master 63-65

Factory Size

Large

Local After Sales Service

Yes

Glass Type

Monolithic & Laminate

Specifications

MASTER 63-65

  • Maximum sheet size (3 axis grinding with 100 mm wheel diameter): 3250x6150 mm

  • Axis stroke (X, Y, Z): 3350; 6250; 390 / 240* mm

  • C axis stroke (opt.): Unlimited (opt.) / Unlimited (standard)*

  • A axis stroke (opt.): Not available / -90°/+90°*

  • Maximum speed (X, Y, Z): 60; 30; 15 mt./min

  • Maximum sheet thikness for peripheral grinding: 115 / 80* mm

  • Bevel angle: Not available / 0°/90°*

  • Electrospindle power: 7,5 kW

  • Max. electrospindle rotation speed: 12000 rpm

  • Maximum tool diameter: 150 mm

  • Tool attachment: ISO 40

  • Tool rack: 14 + 14 (opt.) + 14 (opt.) + 14 (opt.)

  • Required power: 19 kW

  • Weight: 11000 Kg


*5 axis model


Please note that these specifications may be subject to change or customization based on specific configurations or options chosen for the machine.
