Master 23

About the Machine

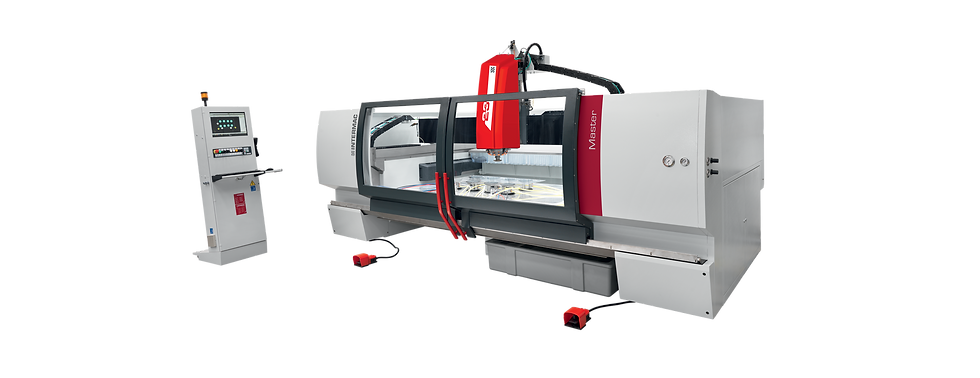

Intermac's Master 23 series stands out as the company's most compact range of glass processing centers, tailored to cater to a diverse clientele. This innovative lineup is built to accommodate the demands of large-scale glass manufacturers, as well as small-scale artisans seeking to expand their businesses and enhance production processes, all while maintaining cost-effectiveness.


The Master 23 series is characterized by its ability to perform a wide array of intricate machining operations, consistently delivering top-notch finish quality. Whether configured with 3 or 4 axes and equipped with aggregates for managing a broad spectrum of machining tasks, these machines share the same high-quality components found in their top-tier counterparts, showcasing Intermac's commitment to delivering technological excellence that specifically caters to the glass industry's unique requirements.


Moreover, the integration of Helix, a cutting-edge Diamut tool, when combined with Intermac's software, transcends the limitations of traditional boring systems. This tool streamlines and optimizes boring, grinding, and countersinking operations on glass sheets up to 19mm, simplifying the entire production process.


In addition to these advancements, the inclusion of new rectangular suction cups further enhances the Master 23 series. These suction cups offer superior vacuum retention compared to traditional counterparts and are available in various sizes, providing maximum customization flexibility. With these features and capabilities, the Intermac Master 23 series represents a leap forward in glass processing technology, delivering high-quality results to a wide range of glass manufacturers and artisans alike.

Master 23

Factory Size

Small - Medium

Local After Sales Service

Yes

Glass Type

Monolithic & Laminate

Specifications

MASTER 23

  • Maximum piece size for machining with a 100mm peripheral wheel: 2500x1200 mm

  • Z-axis stroke: 275 mm

  • Overall machine dimensions:

    • Length (doors open): 5380 mm

    • Length (doors closed): 4700 mm

    • Width: 2680 mm

    • Maximum Height: 2620 mm

  • C-axis stroke (optional): ∞ (Unlimited)

  • Max axis speed: 60 m/min (X), 30 m/min (Y), 15 m/min (Z)

  • Work table height: 730 mm

  • Electrospindle power: 9.2 kW

  • Max electrospindle rotation: 12000 rpm

  • Tool coupling: ISO 40

  • Rear tool magazine (optional) positions: 18

  • Tool magazine on head (optional) positions: 8 (6 if the C axis is fitted)

  • Working air pressure: 7 bar

  • Max air consumption: 160 Nl/min

  • Internal water consumption: 10.5 l/min


Please note that these specifications may be subject to change or customization based on specific configurations or options chosen for the machine.
